LS Busway Fittings and Configurations

Ex-Way has a wide range of fittings to satisfy any building layout. Elbow angles greater or
less than 90° are also available upon request. Fitting designs consist of source-side and load-side.

Offset or combination elbows can be used where standard elbows are not feasible.

Dimensions for each fitting are shown below (inch/mm).

Contact our design team for additional configuration assistance.

Vertical elbow — X / Y (inch / mm)

Material	Rating (A)	X MM	Y MM
AL	630–1,250	500	500
AL	1,600–2,000	600	600
AL	2,500–4,000	700	700
AL	5,000–6,000	900	900
CU	630–1,250	500	500
CU	2,000–3,200	600	600
CU	3,600–5,000	700	700
CU	6,000	800	800

Vertical offset — X / Y / Z (inch / mm)

Material	Rating (A)	X MM	Y MM
AL	630–1,250	500	500
AL	1,600–2,000	600	600
AL	2,500–4,000	700	700
AL	5,000–6,000	900	900
CU	630–1,600	500	500
CU	2,000–3,200	600	600
CU	3,600–5,000	700	700
CU	6,000	800	800

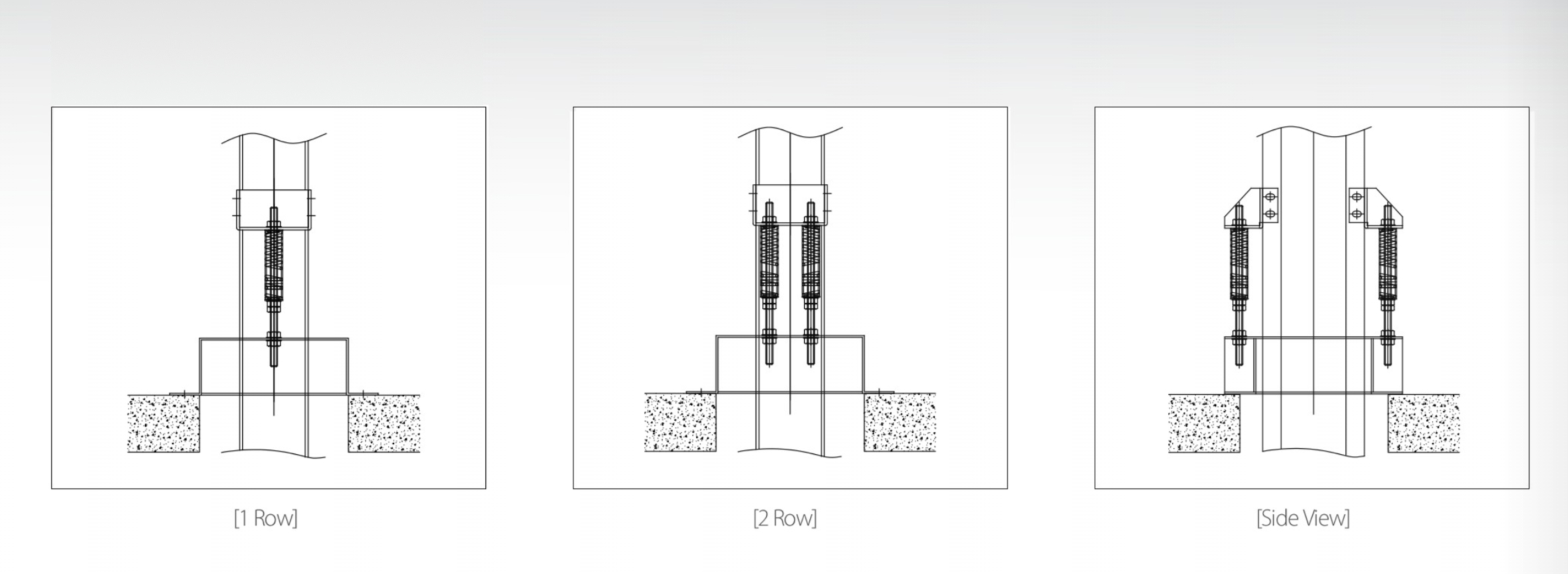

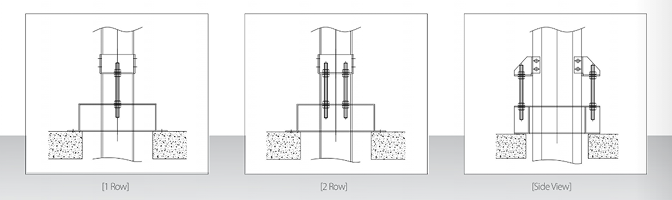

Spring hanger

Use

Between floors

Adjustable height

Yes

Medium hanger trigger

> 14.75 ft / 4.5 m

Rows available

1, 2, or more on request

Horizontal installation — standard specs

Install interval

5 ft / 1.5 m

Stud bolt diameter

0.5 in / 12 mm

Orientations

Flatwise, edgewise

Rigid hanger

Use

Lowest floor

Can replace spring

Yes, by design

Single drop rod

Up to 1,600 A

Rows available

1, 2, or more on request

Single drop rod span

5 ft / 1.5 m each side

Sway bracing

Required with drop rod

Rods supplied by

Contractor

Data Centers

Commercial and Industrial

Residential

Overhead Routing Support: Ex-Way fittings and components can help route busway through planned distribution paths in data center environments.

Coordinated Layouts: Directional fittings and support components help project teams coordinate busway around equipment, aisles, and other building systems.

Future Access: A well-planned component layout can help keep power distribution organized and accessible for future changes.

Layout Flexibility: Ex-Way fittings and components help busway systems adapt to building layouts, equipment locations, and routing requirements.

Equipment Connections: Components can support connections to feeds, equipment, and other electrical infrastructure based on the project layout.

Installation Planning: Fittings, joint kits, hangers, and accessories should be selected based on the final system configuration and installation conditions.

High-Rise Layout Support: Ex-Way fittings and components can support vertical and horizontal busway routing in high-rise and multi-level residential projects.

Space-Conscious Routing: Fittings help busway systems adapt to tight electrical spaces, risers, and coordinated building layouts.

Complete System Support: Accessories and components help complete the Ex-Way system based on project-specific routing, connection, and installation needs.

Ex-Way Fittings and Components

LS Busway Fittings and Configurations

Fittings

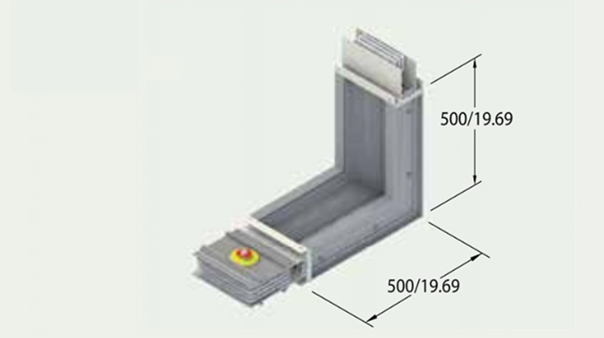

Elbow [Horizontal]

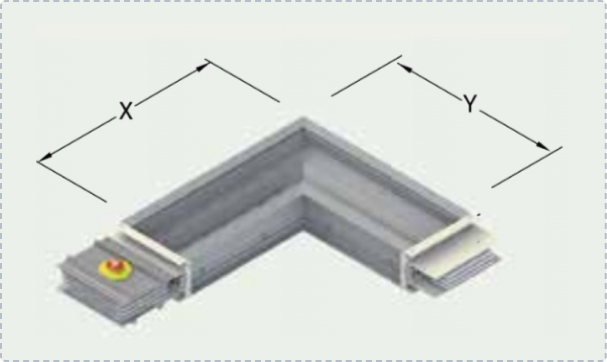

Elbow [Vertical]

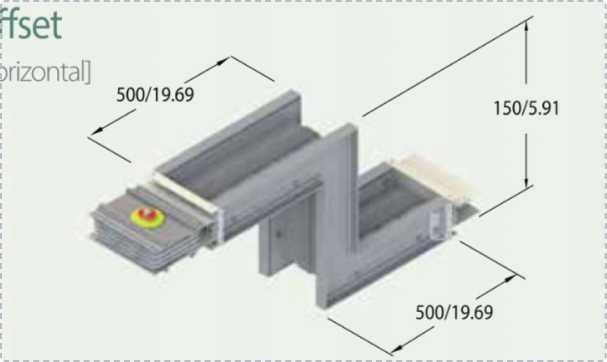

Offset [Horizontal]

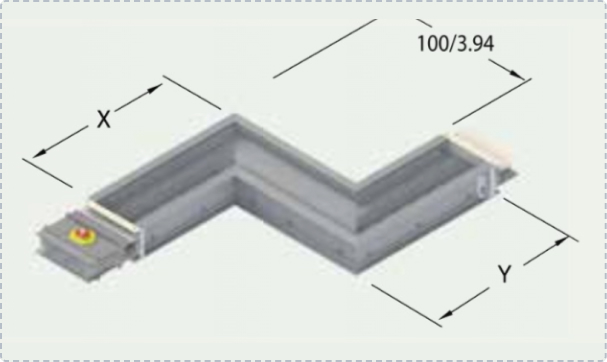

Offset [Vertical]

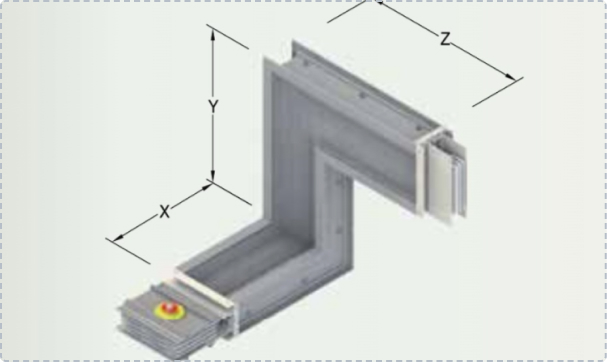

Combination

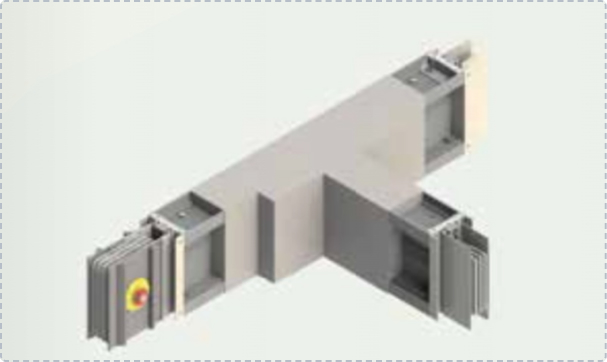

Tee [Horizontal]

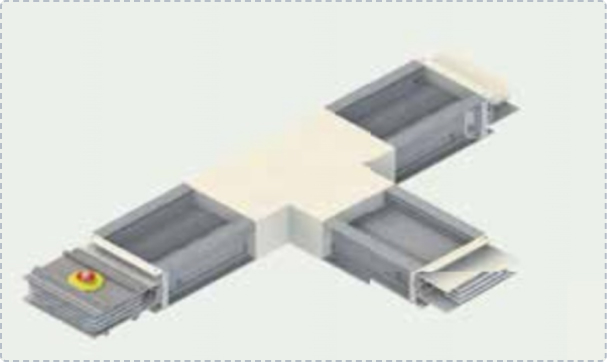

Tee [Vertical]
